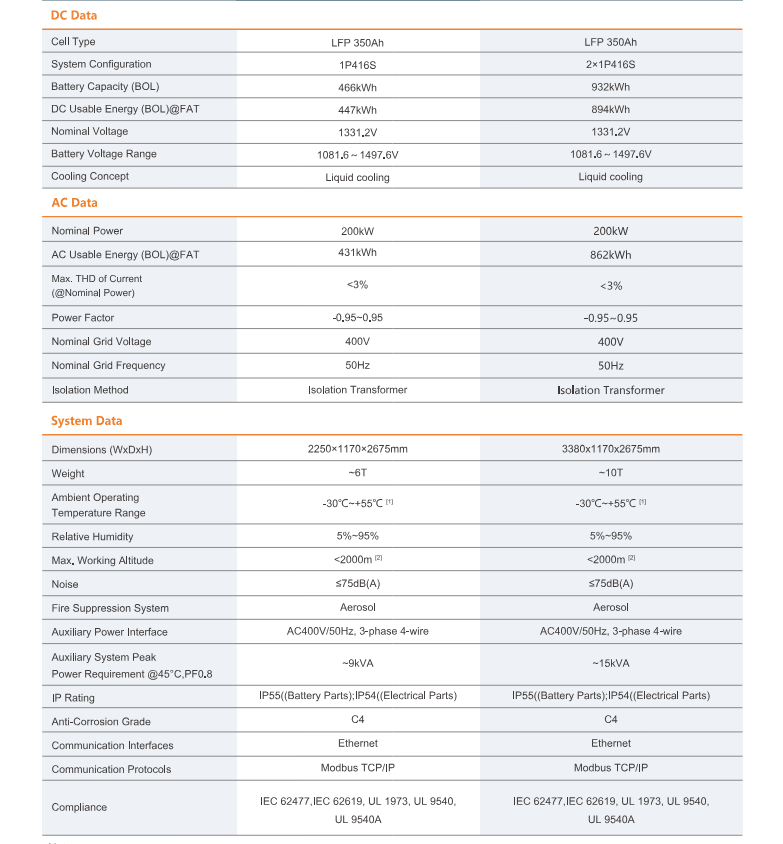

| System Type | IC01-B466AP200-E-R2 | IC01-B932AP200-E-R4 |
| Dimensions (WxDxH) | 2250×1170×2675mm | 3380×1170×2675mm |
| Weight | ~6T | ~10T |
| IP Rating | IP55(Battery Parts);IP54(Electrical Parts) | IP55(Battery Parts);IP54(Electrical Parts) |
| DC usable energy @FAT | 466kWh | 932kWh |
| Nominal voltage | 1331.2V (1081.6～1497.6V) | 1331.2V (1081.6～1497.6V) |
| Nominal power | 200kW | 200kW |
