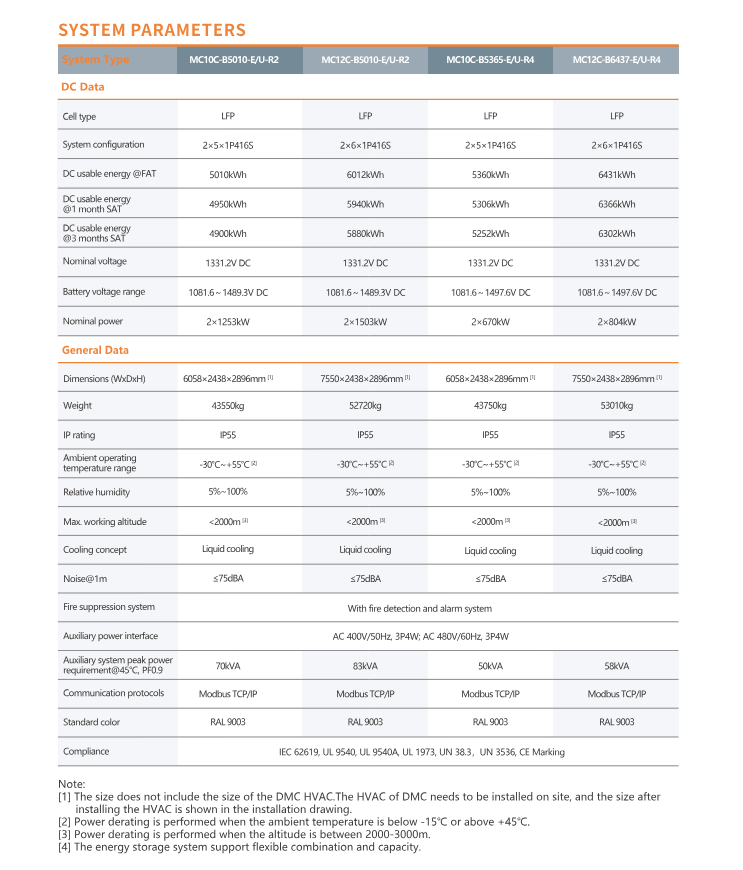

| System Type | MC10C-B5010-E/U-R2 | MC12C-B5010-E/U-R2 | MC10C-B5365-E/U-R4 | MC12C-B6437-E/U-R4 |
| Dimensions (WxDxH) | 6058x2438x2896mm | 7550x2438x2896mm | 6058x2438x2896mm | 7550x2438x2896mm |
| Weight | 43550kg | 52720kg | 43750kg | 53010kg |
| IP Rating | IP55 | IP55 | IP55 | IP55 |
| DC usable energy @FAT | 5010kWh | 6012kWh | 5360kWh | 6431kWh |
| Nominal voltage | 1331.2V DC | 1331.2V DC | 1331.2V DC | 1331.2V DC |
| Nominal power | 2x1253kW | 2x1503kW | 2x670kW | 2x804kW |
